Visual Basic Programming

Page 25

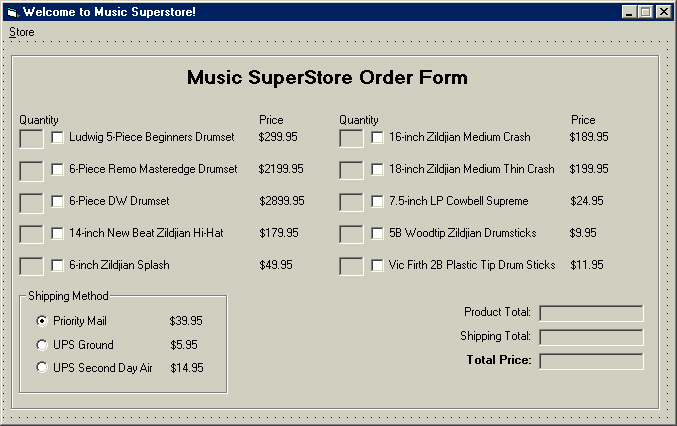

Now that we have gained knowledge about using arrays, we will create a program a little more advanced. We are going to create an application for a fictitious music store. The program will store the instruments and prices for the instruments in an array.

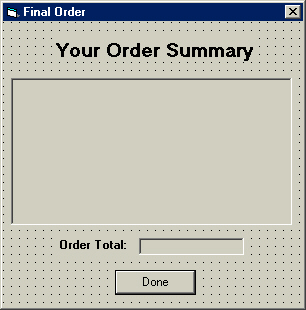

Now that we have set up this form, we can set up the order display form.

Well done setting up those forms. Now we can finally begin coding!

Line 1: Tell Visual Basic to create an error when the code uses an undeclared variable.
Line 2: Declare variable bytField as the Byte data-type to store the values of the indexes of the objects.
Line 3: Declare variable intQuantity as the Integer data-type to store the amount of items the user wants when they want the same amount of items for the entire order (this makes our life easier to select all the items as well).
Line 4: Declare variable strCatalog as a String array, with the dimensions 10 by 4 (includes 0).
Line 5: Declare variable sngSubtotal as a Single to store the total amount of the order before the shipping price. Declare variable sngShipping as a Single to store the cost of the shipping for the order.

This line sets the shipping cost (sngShipping) to 39.95 when the option button optPriority is selected. This is just a little joke on the government because they lie about their shipping costs. Anyway...

Line 1: Declare variable bytField to store the index of the objects.
Line 2: Display an input box asking the user for the quantity of all the items, then store that value in the variable intQuantity.
Line 3: Begin For Next loop. Take bytField and look at values 0 through 9.
Line 4: Set the text of the text box with the current index value of bytField to the value of intQuantity, retrieved from the user in line 2. It goes through all of the text boxes because they are indexed 0 through 9, the same range of the loop values.
Line 5: Check all the check boxes.
Line 6: Go to the next value of bytField in order to look at all the objects (0 through 9).

Lines 1 through 20 store the name of each product and its price in the array we set up. They are set in their own elements. To picture this array, see below:

Name of object Price of object
Ludwig 5-Piece Beginners' Drum Set 299.95
6-Piece Remo Masteredge Drumset 2199.95
6-Piece DW Drumset 2899.95
14-inch New Beat Zildjian Hi-Hat 179.95
6-inch Zildjian Splash 49.95
16-inch Zildjian Medium Crash 189.95
18-inch Zildjian Medium Thin Crash 199.95
7.5-inch LP Cowbell Supreme 24.95
5B Woodtip Zildjian Drumsticks 9.95
Vic Firth 2B Plastic Tip Drum Sticks 11.95

Now that we have set up the array, we can start to use these objects.

Line 1: Begin For Next loop, looking at values 0 to 9 for the variable bytField.
Line 2: Test to see which checkbox is checked. Looks at all of them because it searches indexes 0 through 9 as specified in line 1.
Line 3: When the loop finds a checkbox that is checked, enable the txtQuantity text box with the same index value of the checkbox (index value of bytField).
Line 5: When the loop sees a checkbox that is not checked, disable the txtQuantity text box with the same index value of the checkbox.
Line 6: Clear the text in the txtQuantity text box when the check next to it is unchecked.
Lines 7 and 8 clear the array elements that were written to (dimensions two and three).
Line 9 ends the If statement, and Line 10 increments the loop to look at indexes up to nine.

Line 1: Declare local variable bytClear as a Byte data-type
Line 2: Begin For Next loop, looking at values 0 through 9 for the variable bytClear.
Line 3: Clear the text box txtQuantity with index value of bytClear, thus clearing all ten because the variable looks at values 0 through 9 as set in line 2.
Line 4: Uncheck the checkbox with an index value of bytClear, which looks at 0 through 9, thus clearing all ten checkboxes
Line 5: Clear the text in dimension two of the array strCatalog. Remember that the array is indexed 0 through 9. This element will later store the quantity of the separate items.
Line 6: Clear the text in dimension three of the array strCatalog. This element will later store the total cost of each separate item. Quantity of the item times its unit cost.
Line 7: Increment the loop; go to the next value of the variable bytClear up to 9.
Line 8: Clear the caption of the label lblTotal(1) on the form frmSummary.
Lines 9 through 11 clear the caption of the labels displaying the totals on the current form (frmOrder).
Lines 12 and 13 reset the variable sngTotal, which is the entire order total, and the variable sngSubtotal, which is the order total before adding the shipping cost.
Line 14: Disable the menu item mnuDisplay to prevent the user from viewing a blank order.

Lines 1 and 2 reset the variables sngTotal and sngSubtotal to 0 so that they are recalculated and not added to the previous value. We should always do this just as good coding practice.
Line 3: Once again, look at bytField for values of 0 to 9.
Line 4: Check all the checkboxes (0 through 9) and test to see which ones are checked.
Line 5: Store the text in txtQuantity (quantity of individual items) in the array elements when the checkbox for that object is checked.
Line 6: Store the total price of each separate item (quantity of item times its unit price) in the next (fourth --> number three) array element with the same value of bytField.
Line 7: End the If statement.
Line 8: Set the variable sngSubtotal equal to itself plus the value of all the data in the fourth element of the array (stores total price of a separate product).
Line 9: Go to the next value of bytField in order to search all checkboxes (indexed 0 through 9) and store them in the appropriate cells of the array.
Line 10: Set the caption of the label lblProductTotal(1) to the variable sngSubtotal, formatted as Currency (Dollars and cents).
Line 11: Set the caption of the label lblShipping(1) to the variable sngShipping, formatted as Currency.
Line 12: Set the variable sngTotal equal to the value of sngSubtotal (stores the total price of all the items together) plus the value of sngShipping.
Line 13: Set the caption of the label lblOrderTotal(1) to the value of the variable sngTotal, formatted as Currency.
Line 14: Enable the menu item mnuStoreDisplay.

Line 1: Display the form frmSummary.
Line 2: Look at values 0 through 9 for the variable bytField (all the objects).
Line 3: Search for the checked checkboxes.
Line 4: When it finds a checked checkbox, add the item displayed in the list box on the form frmSummary. It adds the data in array element strCatalog(bytField, 0), which stores the item name, then place a space, then a parenthesis, then the data in the array element strCatalog(bytField, 2), which stores the quantity of the corresponding item, then a parenthesis, then a space, then the data in the array element strCatalog(bytField, 3), formatted as currency ($0,0.00 is currency), which stores the total price of each separate item in the array (quantity of item times its unit price).
Line 5: End the If statement.
Line 6: Increment the For Next loop.

This program should work nicely now. But what else could we do? As you know, when we take the value of a string that has a letter in it or not a number, we get zero. How about we do not allow the user to enter letters into the quantity text boxes?

Line 1: Declare variable bytValidCharacters as a Byte. We use this below just as a flag
Line 2: Set the variable bytValidCharacters to one.
Line 3: Exit the sub-procedure when the text in one of the text boxes is empty. Because these text boxes are already indexed, we have a parameter (argument) in the parenthesis that allows us to specify a specific value to (in this case, one through nine). This line automatically looks at each text box and tests the text in it. It will not execute any code when it sees that the text box we are changing is empty. Remember that it looks at this value when we change the text because we are using the Change event.
Line 4: Begin For Next loop, looking at bytField for values of one to the length of the text in the txtQuantity text box being changed (length returns a value, so the loop looks all the way to the end character).
Line 5: Test the string txtQuantity(Index).Text for 1234567890, or numbers, at however many places in according to the value of bytField and look at one character. The variable bytField takes the place of the character space, and this variable is incremented because it is the loops test variable. As a result, this loop continues to look at the next character in the string (looks at character 1 then 2 then 3 and so forth to the value of the string's length). When there are numbers in the string, add one to the variable bytValidCharacters. This variable acts as a flag to tell us that all the characters are numbers. It increments by one just like the loop's test expression, bytField (without a Step statement, For Next loops increment plus one more by default).
Line 7: When bytValidCharacters is not equal to bytField, execute the lines below (lines 8 through 11). Remember that both variables increment by one.
Line 8: Display a message box to the user.
Line 9: Set the selection start of the text box the user is changing to the Length of the text in the text box txtQuantity minus one. Remember that the Len function returns a value, so this line simply moves the cursor back one character.
Line 10: Set the selection length of the text box txtQuantity to one to select one character. This selects the invalid character because the cursor move one behind that character.
Line 11: Clear the selected text in the txtQuantity text box, thus clearing the invalid character.

I hope that code was not too difficult to understand. I tried to simplify it. Now to finally finish this program.

Recall that sngTotal is the final order total, so we want to display it as currency in the total order cost label (lblTotal(1)).

You know what this code does I am sure! The reason though that we need to clear the list box lstOrder is because the other form adds the items to it regardless, so it just keeps adding them to the list. Just like resetting a label before we display a value.

Test the application if you would like. I hope that you enjoyed this lesson about arrays. Now you can move on to Page 26.
